push button to rpi

محتويات

- circuit

- code1

- code2

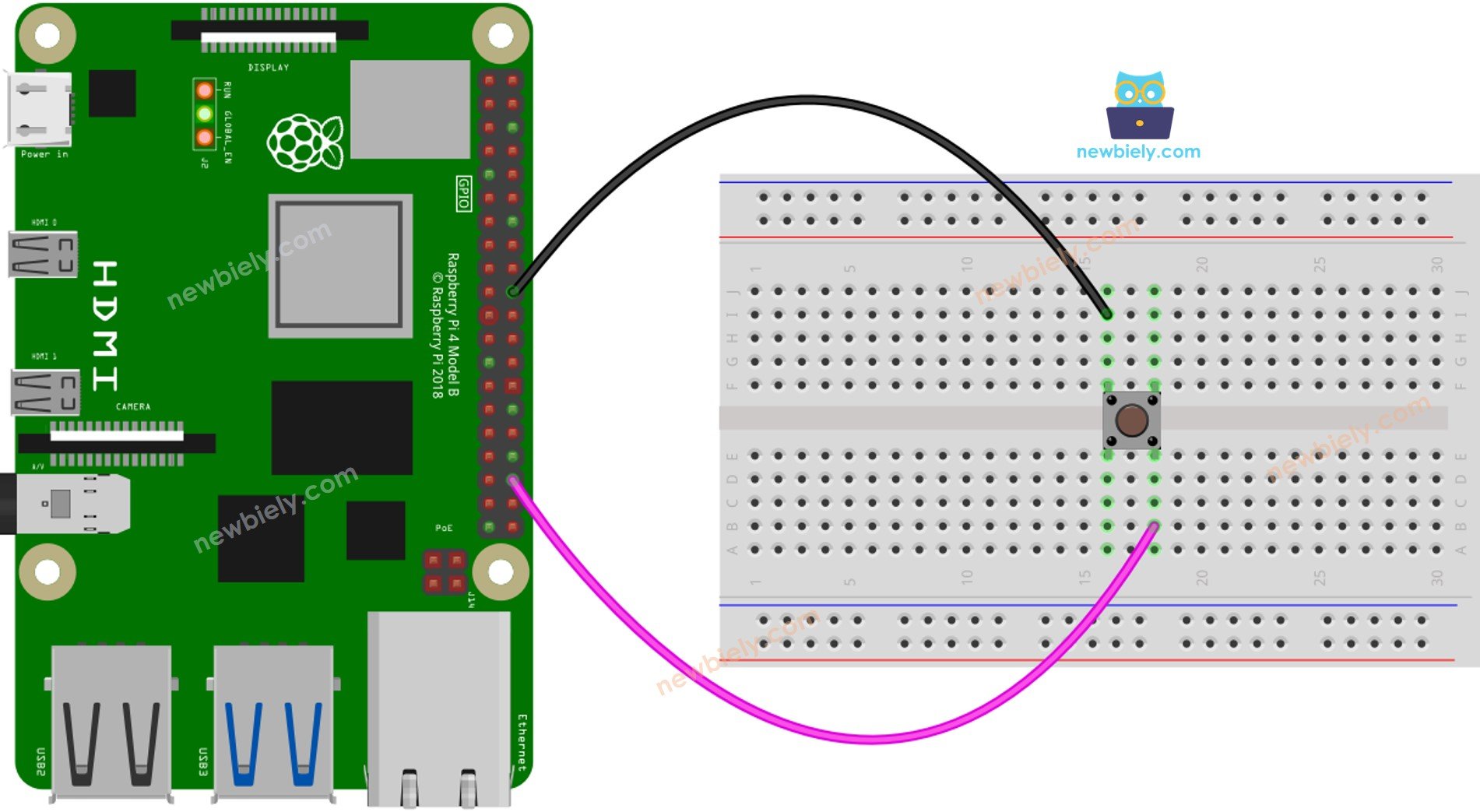

circuit



code1

code
نسخ
اقتباس
عرض
تنزيل


import RPi.GPIO as GPIO import time # Define GPIO pin for the button BUTTON_pin = 16 # Set the GPIO mode GPIO.setmode(GPIO.BCM) # Setup button with pull-up resistor GPIO.setup(BUTTON_pin, GPIO.IN, pull_up_down=GPIO.PUD_UP) try: system_active = False while True: button_state = GPIO.input(BUTTON_pin) if button_state == GPIO.LOW: system_active = not system_active if system_active: print("System activated") else: print("System deactivated") time.sleep(0.250) # Debounce delay except KeyboardInterrupt: GPIO.cleanup()


code2

code
نسخ
اقتباس
عرض
تنزيل


import RPi.GPIO as GPIO # Set the GPIO mode to BCM GPIO.setmode(GPIO.BCM) # Define the GPIO pin for your button BUTTON_PIN = 16 # Define debounce time in milliseconds DEBOUNCE_TIME_MS = 200 # 200 milliseconds # Set the initial state and pull-up resistor for the button GPIO.setup(BUTTON_PIN, GPIO.IN, pull_up_down=GPIO.PUD_UP) # Initialize the button state and previous state button_state = GPIO.input(BUTTON_PIN) prev_button_state = button_state # Define a function to handle button presses def button_callback(channel): global button_state button_state = GPIO.input(BUTTON_PIN) # Add an event listener for the button press GPIO.add_event_detect(BUTTON_PIN, GPIO.BOTH, callback=button_callback, bouncetime=DEBOUNCE_TIME_MS) try: # Main loop while True: # Check if the button state has changed if button_state != prev_button_state: if button_state == GPIO.HIGH: print("Button released") else: print("Button pressed") prev_button_state = button_state except KeyboardInterrupt: # Clean up GPIO on exit GPIO.cleanup()
