Description

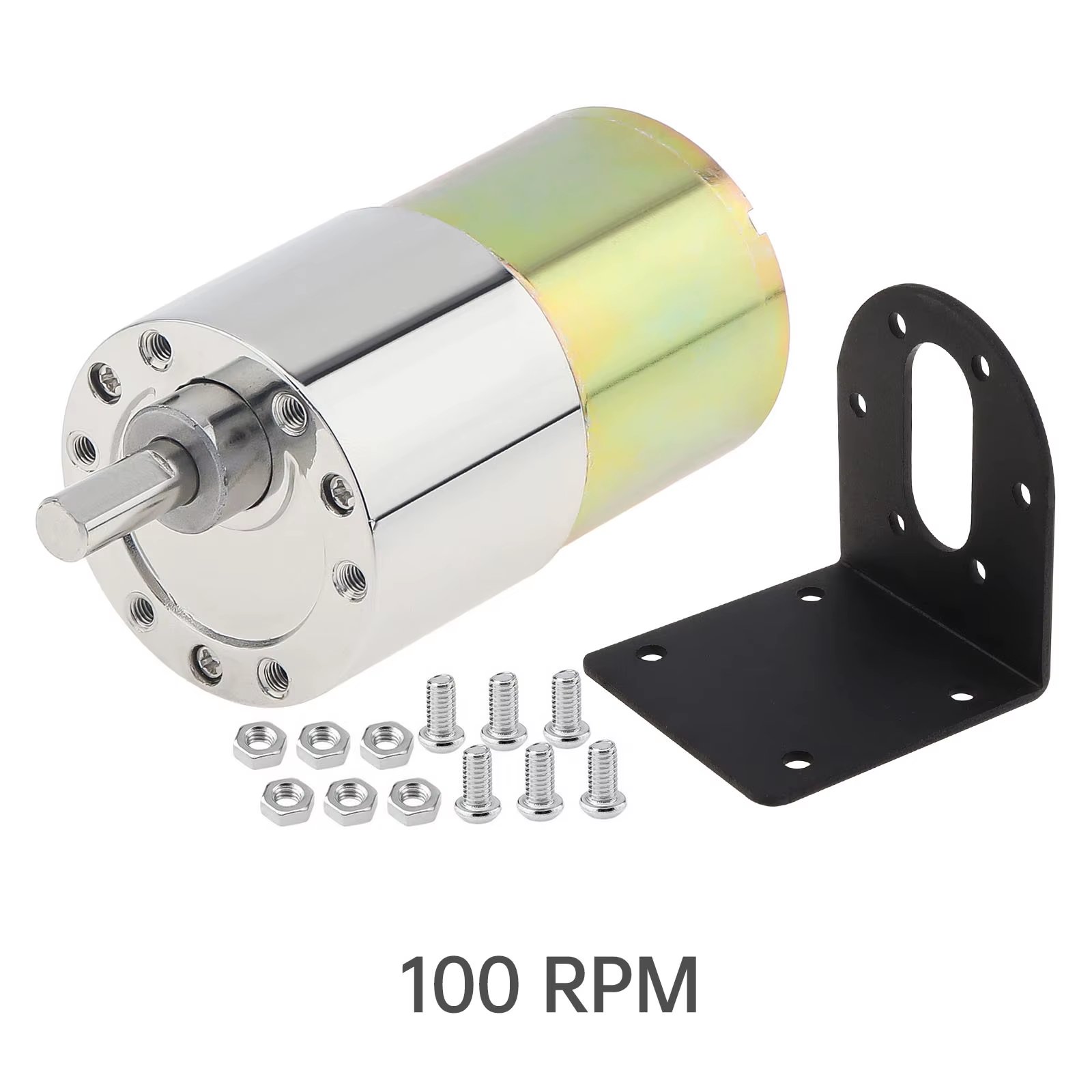

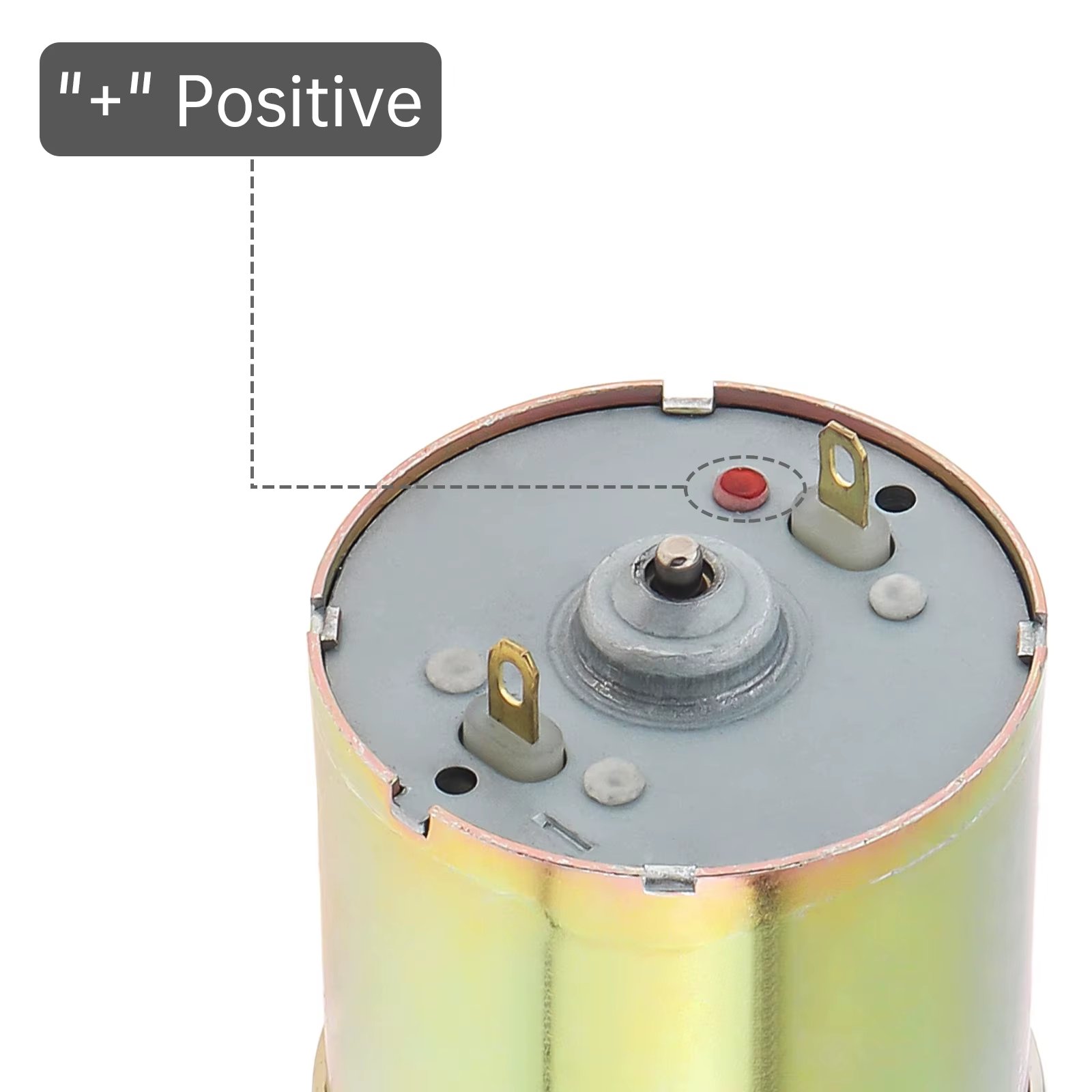

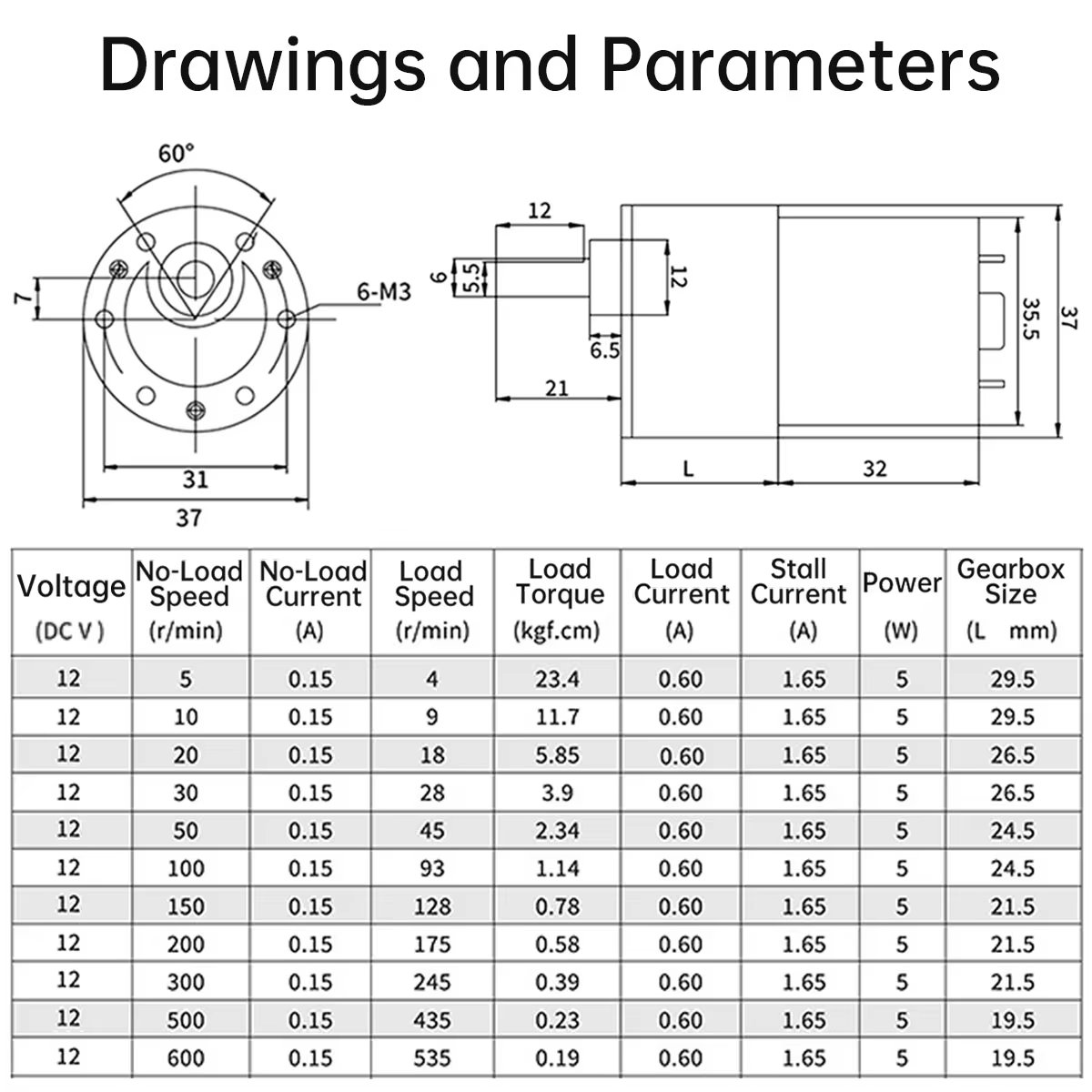

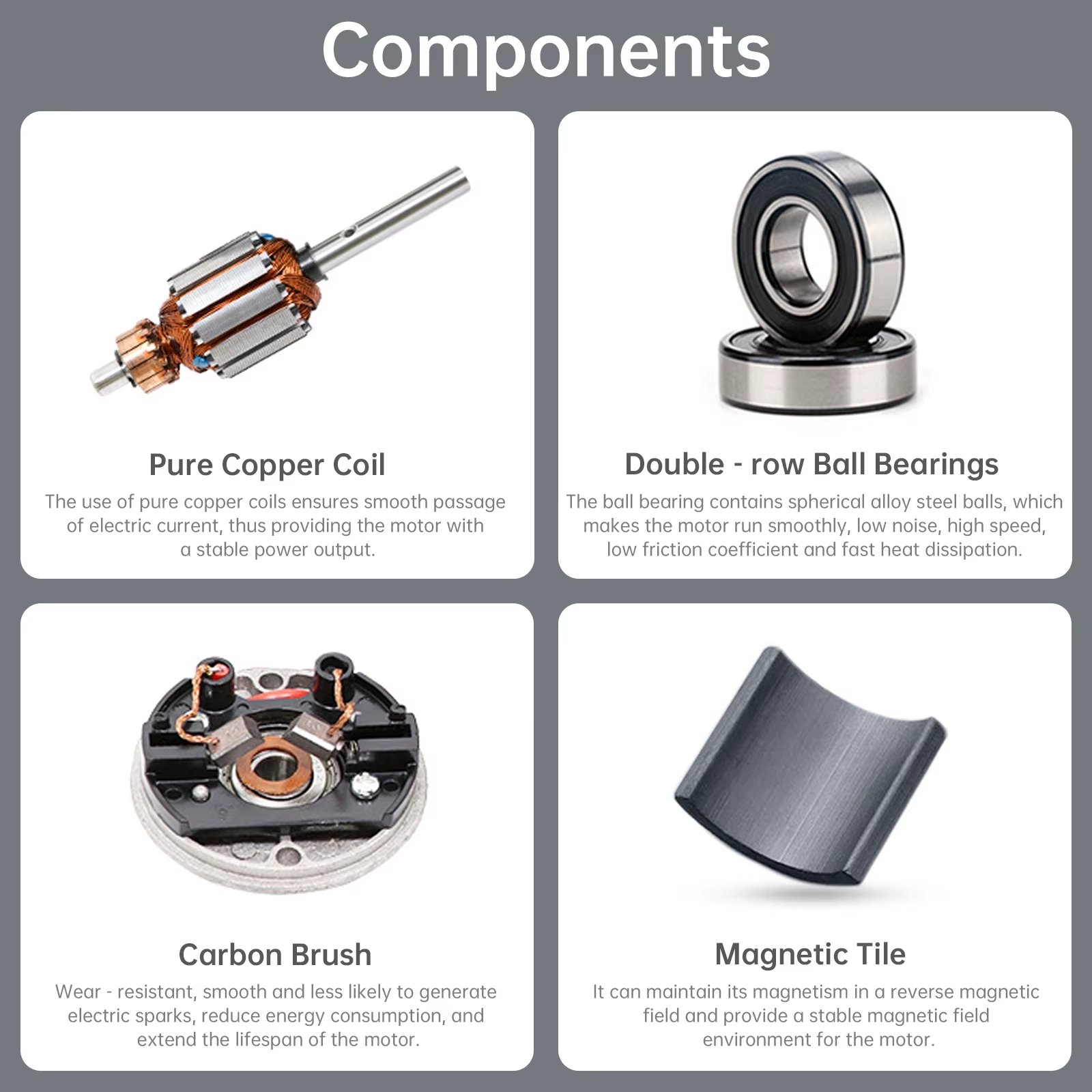

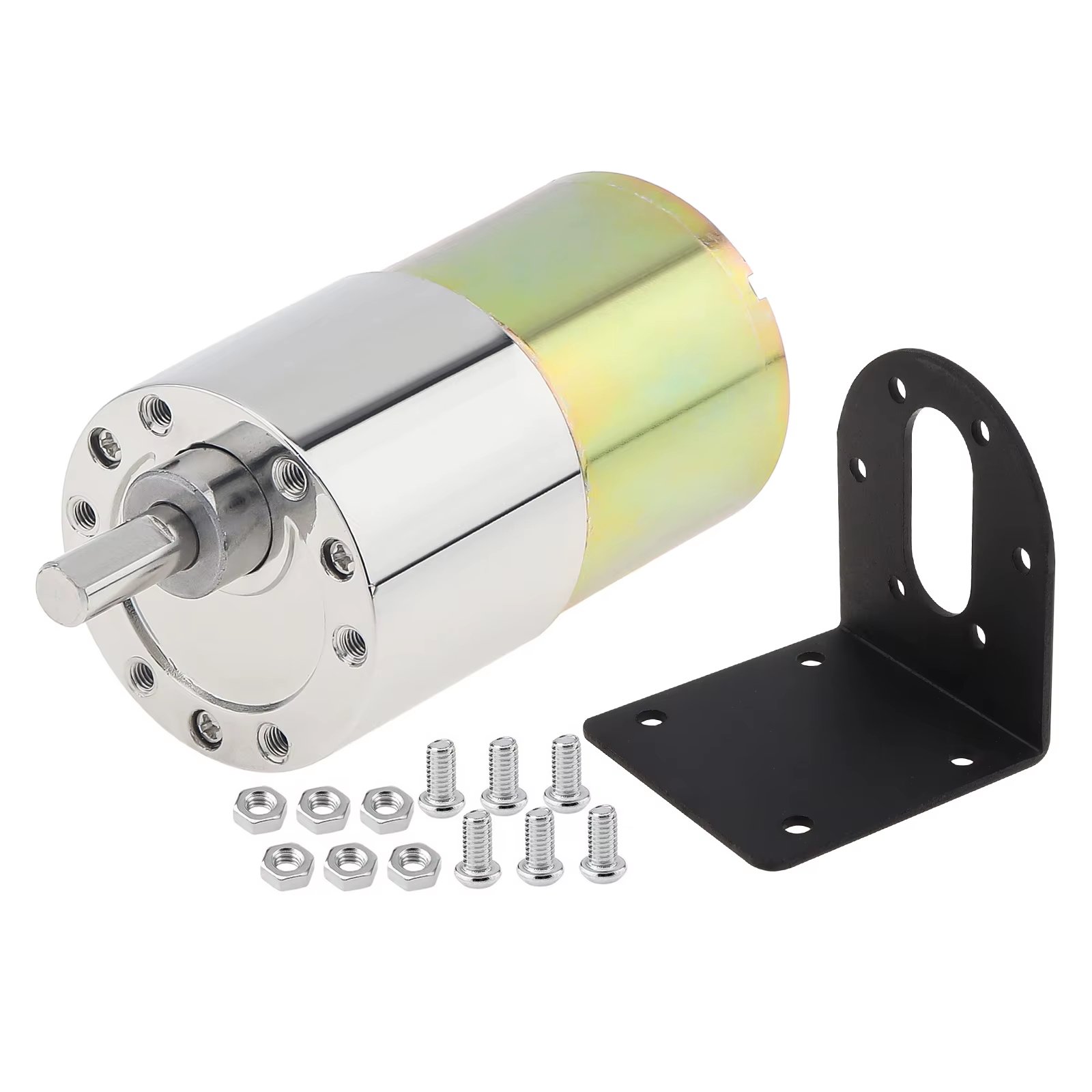

Product Name: 37GB520 Geared Motor Shaft Total Length: 86mm No Load Current: 0.15A Power: 5W No Load Speed: 100RPM Installation Screw Size: M3 Model Number: 37GB-520 Commutation: Brush Voltage: 12V DC Rotation Direction: CW/CCW Torque: 0.19 - 23.4 kgf.cm Working Current: 0.6A Shaft Diameter: 6mm(D-Shaft) Stall Current: 1.65A Features: - Positive and Negative Rotation. Support forward and reverse rotation(CW/CCW), also can adjust the speed, but the motor speed can only be reduced, can not be raised. - Widely used for various industries micro machinery, such as processing machinery, printing machinery, robots, packaging machines, lawn mowers, circulating fans, automated production lines, turntable motion control, various instruments, etc. - All Metal Gears, high temperature resistance, high abrasion resistance, strong load capacity, sturdy and solid. - D-shaped output shaft, using high hardness steel, good toughness, impact resistance. - Pure copper wire core rotor, with precision winding technology, the geared motor power instant increased by 30 percent. Reduction Ratio: 1 : 17.4 Output Shaft Length: 15mm D-Shaped Output Shaft Size: 6 x 14mm (0.24inch x 0.55inch) (D x L) Gearbox Size: 37 x 23mm (1.46inch x 0.91inch) (D x L) Motor Size: 36.2 x 33.3mm (1.43inch x 1.31inch) (D x L) Storage Temperature: 0 - 40 Celsius degree Storage Humidity: 15 - 90 percent RH Motor Use Temperature: 0 - 70 Celsius degree Place of Application: Parking locks, intelligent carts, intelligent equipment, card dispensers, channel gates, vending machines, packaging machinery, sweepers, etc. Note: 1. If the motor does not work properly, it may be because the electrode piece may be knocked into the motor during transportation due to collision, causing connection problems. Gently pull out a little and try again. 2. When you use the motor, there should be no binding objects, such as adhesive should not flow into the bearing through the rotating shaft, which will harm of the motor. 3. When soldering the motor terminals of positive and negative power supply, the temperature of the soldering iron should be 340 Celsius degree to 40 Celsius degree and the heating time should be within 3 seconds. 4. When installing the motor, the screws are too long, which may cause contact between the motor itself and the rotor, and may affect the characteristics. 5. Handling motors: Please gently, as far as possible the use of motor shell part. 6. Motor wiring: Red lead to the positive electrode, black lead to the negative pole, if reversed, the motor rotation in the opposite direction. 7. Overload: As far as possible within the specified load range, prohibit motor blocking or close to the stall state for too long time to runs. Otherwise, the motor will burn out. 8. The manual rotation of the shaft may have the opposite effect on the life of the motor, in order to extend the life of the motor, please check whether your load is in accordance with the regulations, do not overload or hang the end of the shaft with objects that affect the rotation. 9. Heavy eccentric radiation loads are harmful to the life of the motor. 10. This motor can not work continuously for a long time, please be able to rest for 5 minutes after working for 5 minutes. To ensure the normal life of the motor. 11. The no-load speed of the motor itself has an error of 10 percent floating up and down. At load, the motor speed will also drop to the load speed. 12. Pay attention to the use of voltage and current range, otherwise the motor performance and motor life will decline. 13. Do not run the motor in high temperature and humidity. 14. Do not store the motor in high temperature or extreme humidity, or in corrosive gas, which will reduce the motor is effectiveness. 15. Do not allow the motor shaft to jam, when the power is transferred, the motor will overheat in a short time and burn its accessories. Product Weight: 225 G / 7.94 Ounces Product Dimensions (L*W*H): 8.3*3.7*3.7 CM / 3.27*1.46*1.46 Inches Package Weight: 230.0 G / 8.11 Ounces Package Dimensions (L*W*H): 10.0*4.5*4.5 CM / 3.94*1.77*1.77 Inches Retail Packaging: Yes, General Box
