 * https://circuits4you.com
 * https://circuits4you.com/2016/11/25/hx711-arduino-load-cell/
 * 2016 November 25

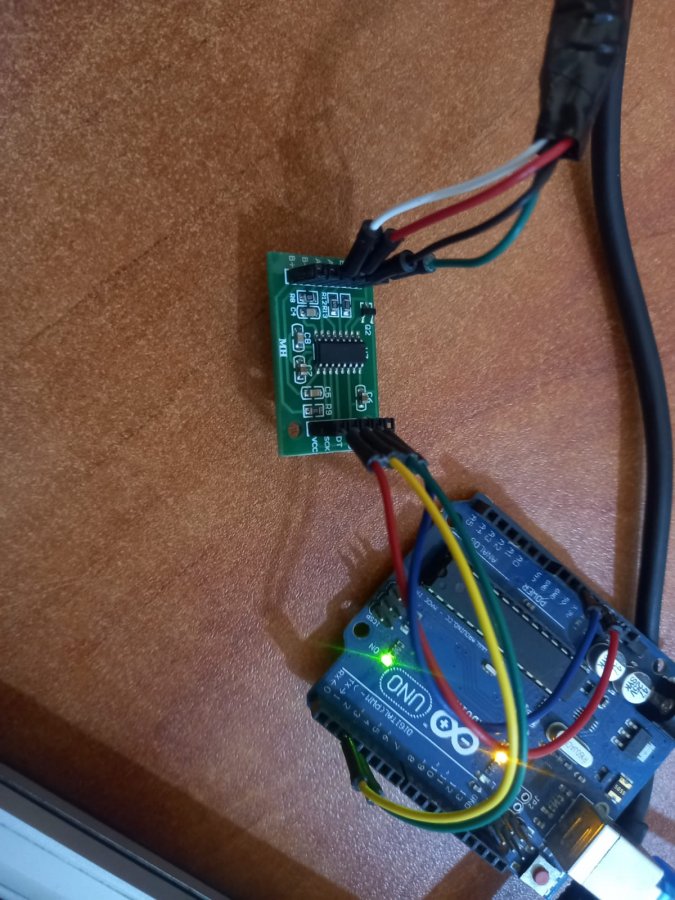

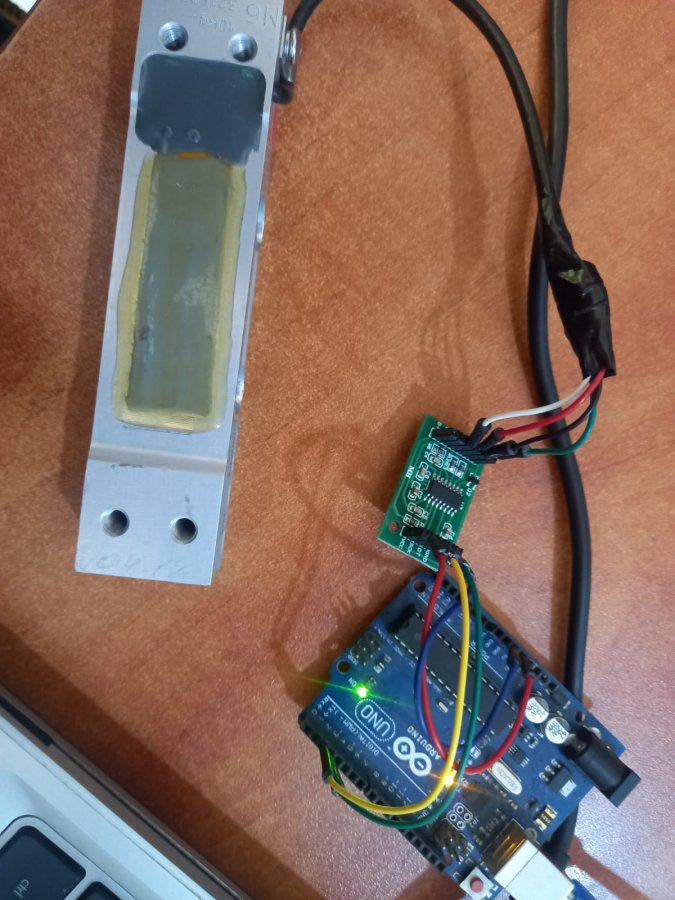

 * Load Cell HX711 Module Interface with Arduino to measure weight in Kgs

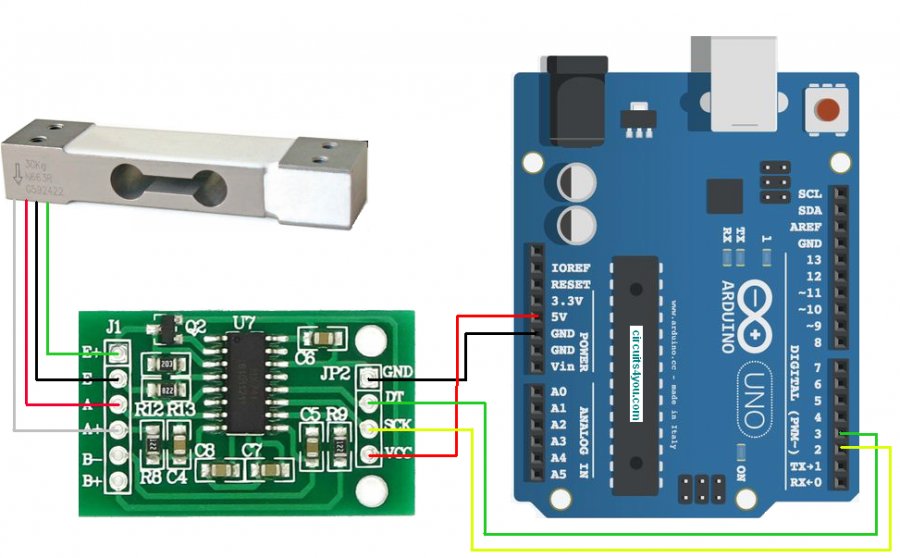

 Arduino
 pin
 2 -> HX711 CLK
 3 -> DOUT
 5V -> VCC
 GND -> GND

 Most any pin on the Arduino Uno will be compatible with DOUT/CLK.
 The HX711 board can be powered from 2.7V to 5V so the Arduino 5V power should be fine.
*/

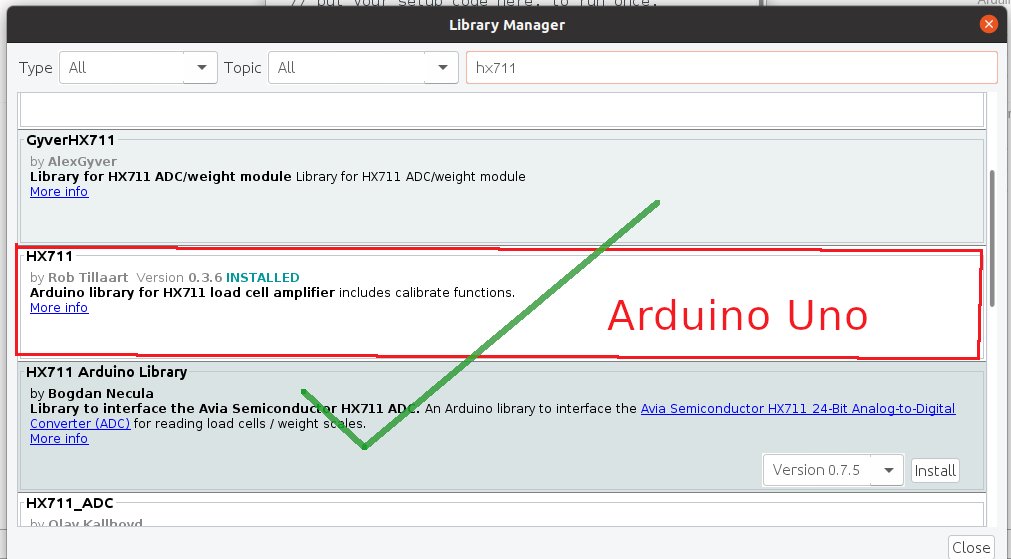

#include \"HX711.h\"  //You must have this library in your arduino library folder

#define DOUT  3
#define CLK  2

HX711 scale(DOUT, CLK);

//Change this calibration factor as per your load cell once it is found you many need to vary it in thousands
float calibration_factor = -96650; //-106600 worked for my 40Kg max scale setup

//=============================================================================================
//                         SETUP
//=============================================================================================
void setup() {
  Serial.begin(9600);
  Serial.println(\"Press T to tare\");
  scale.set_scale(-96650);  //Calibration Factor obtained from first sketch
  scale.tare();             //Reset the scale to 0
}

//=============================================================================================
//                         LOOP
//=============================================================================================
void loop() {
  Serial.print(\"Weight: \");
  Serial.print(scale.get_units(), 3);  //Up to 3 decimal points
  Serial.println(\" kg\"); //Change this to kg and re-adjust the calibration factor if you follow lbs

  if(Serial.available())
  {
    char temp = Serial.read();
    if(temp == \'t\' || temp == \'T\')
      scale.tare();  //Reset the scale to zero
  }
}
//=============================================================================================
