Description:

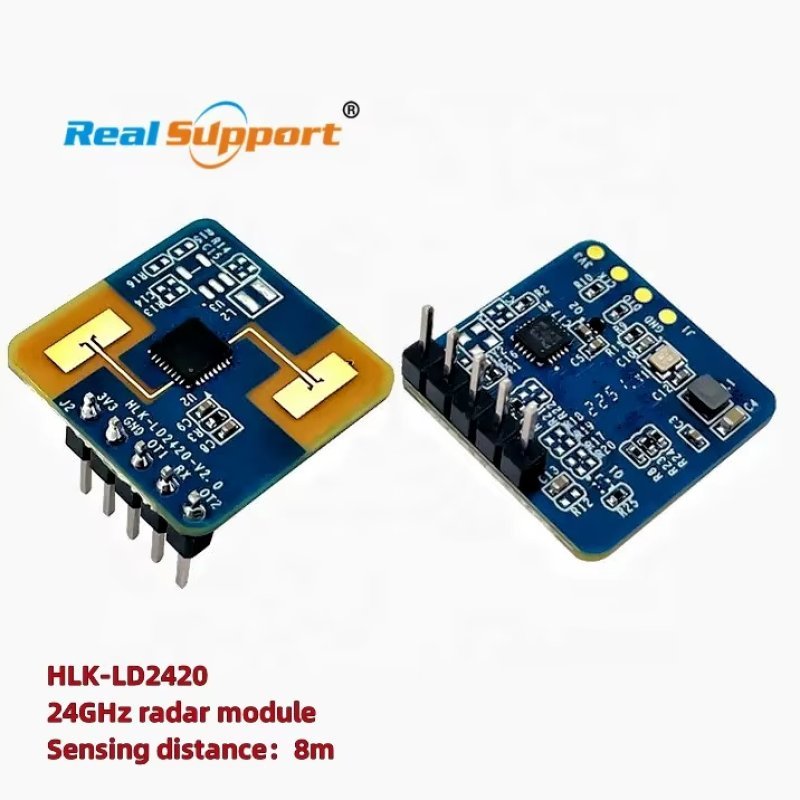

The HLK-LD2420 is a high-performance 24 GHz radar module with a single transmit and receive antenna from Hilink. Its human sensing algorithm utilizes millimeter-wave radar distance measurement technology and the advanced proprietary signal processing technology of the S3 series chip to accurately detect moving, micro-moving, and standing people. The HLK-LD2420 is primarily used in indoor scenarios to detect movement or micro-movement within an area and update detection results in real time. It has a maximum sensing distance of 8 meters for moving people. The sensing range, sensitivity in different ranges, and refresh time can be easily configured. Supporting GPIO and UART interfaces, it offers plug-and-play functionality and flexible application in various smart scenarios and end products.

Specifications:

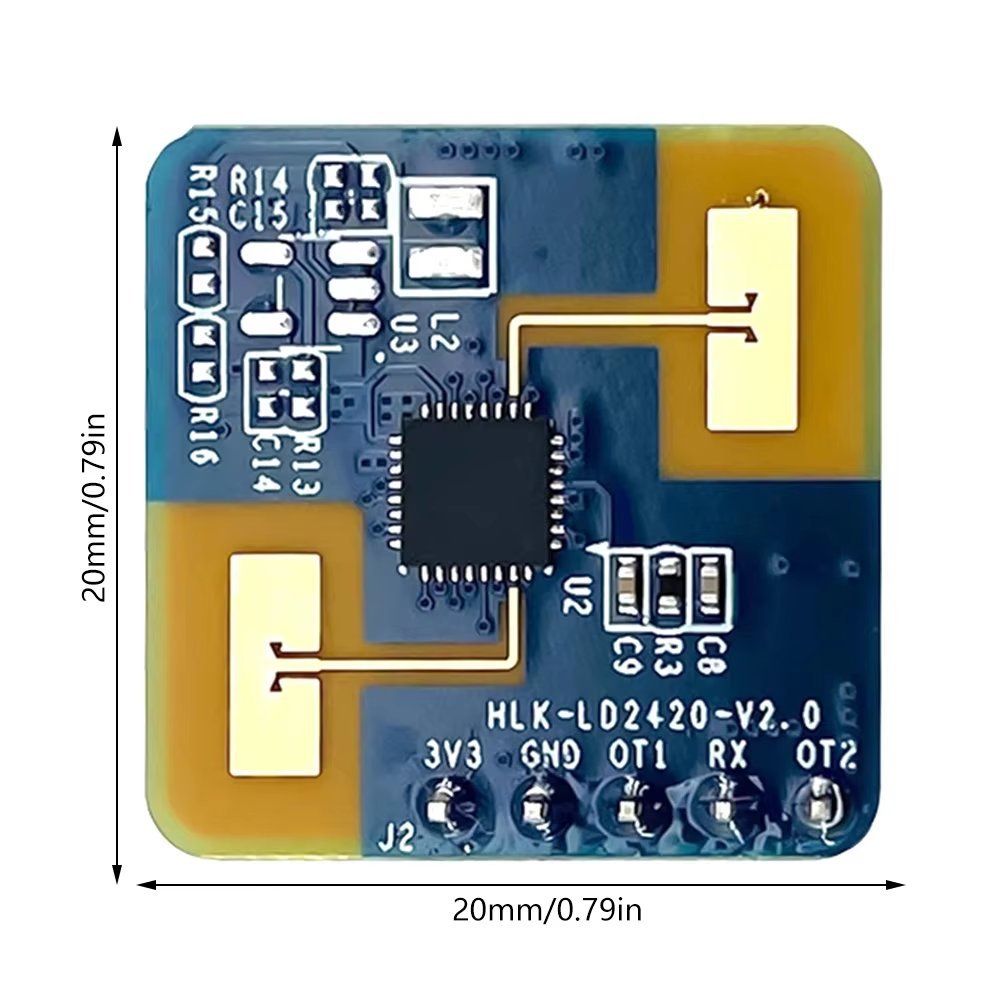

Model: HLK-LD2420 Dimensions: 20x20mm Output Type: Digital Sensor Operating Principle: Magnetic Sensor Frequency: 24GHz-24.25GHz Modulation: FMCW Detection Distance: Adjustable from 0.75 to 6 meters Detection Angle: ±60° Power Supply: 3.3V (Typ.) Current: ~50mA Serial Output Voltage: 3.3V Sweep Bandwidth: 250MHz Ambient Temperature: -40°C to +85°C Data Format: Serial ASCII Output/High and Low Levels: 3.3V & 0V Package: With Pins Applications: Smart Lighting Control/Advertising Screen Sensor
