ESP32

ESP32 is a series of low-cost, low-power system on a chip microcontrollers with integrated Wi-Fi and dual-mode Bluetooth.


70 ₪

الناشر: متجر القطع الالكترونية

القسم: متحكمات

تاريخ النشر: 2021-11-20


Firebase with ESP32 & ESP8266

ربط الESP32 او ESP8266 مع قاعدة بيانات نوع Firebase

Json with ESP32

ارسال واستقبال بيانات على شكل json

get date time from NTP server

معرفة الوقت الحقيقي من خلال الاتصال مع سيرفر pool.ntp.org

install Esp32 board to arduino IDE

كيفية تثبيت القطعة على برنامج الاردوينو



Json with ESP32

محتويات

- ArduinoJSON Library


ArduinoJSON Library

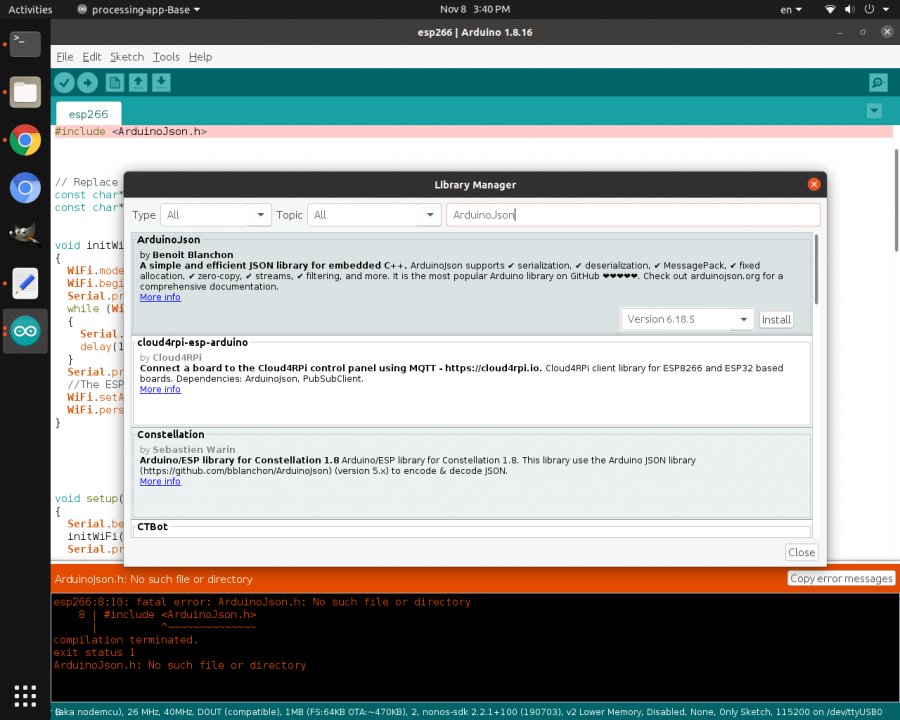

You also need to install the ArduinoJSON library. You can install this library in the Arduino IDE Library Manager. Just go to Sketch > Include Library > Manage Libraries and search for the library name as follows:





code
نسخ
اقتباس
عرض
تنزيل


#include "WiFi.h" // ESP32 WiFi include #include <HTTPClient.h> #include <ArduinoJson.h> const char* ssid = "aaa"; const char* password = "aaa"; WiFiClient client; HTTPClient httpClient; const char *url = "http://192.168.43.154/path-to-folder/send_receive_data.php"; //===============================(ConnectToWiFi) void ConnectToWiFi() { WiFi.mode(WIFI_STA); WiFi.begin(ssid, password); Serial.print("Connecting to "); Serial.println(ssid); uint8_t i = 0; while (WiFi.status() != WL_CONNECTED) { Serial.print('.'); delay(500); if ((++i % 16) == 0) { Serial.println(F(" still trying to connect")); } } Serial.print(F("Connected. My IP address is: ")); Serial.println(WiFi.localIP()); } //===============================(/ConnectToWiFi) void setup() { Serial.begin(115200); ConnectToWiFi(); Serial.print("localIP: "); Serial.println(WiFi.localIP()); delay(1000); } void loop() { //-------------------------------(wifi_status) switch (WiFi.status()) { case WL_NO_SSID_AVAIL: Serial.println("Configured SSID cannot be reached"); break; case WL_CONNECTED: Serial.println("Connection successfully established"); Serial.println(WiFi.localIP()); break; case WL_CONNECT_FAILED: Serial.println("Connection failed"); break; } Serial.printf("Connection status: %dn", WiFi.status()); Serial.print("RRSI: "); Serial.println(WiFi.RSSI()); //-------------------------------(/wifi_status) //-----------------------------(send&fetch data) String data = "temperture_val=" +String(22) + "&humidity_val=" + String(99)+""; httpClient.begin(client, url); httpClient.addHeader("Content-Type", "application/x-www-form-urlencoded"); httpClient.POST(data); String string_json_fetched = httpClient.getString(); httpClient.end(); Serial.println(string_json_fetched); StaticJsonDocument<500> doc; // Deserialize the JSON document DeserializationError error = deserializeJson(doc, string_json_fetched); // Test if parsing succeeds. if (error) { Serial.print(F("deserializeJson() failed: ")); Serial.println(error.f_str()); return; } //-----------------------------(/send&fetch data) delay(3000); }
