TTP223B - touch sensor

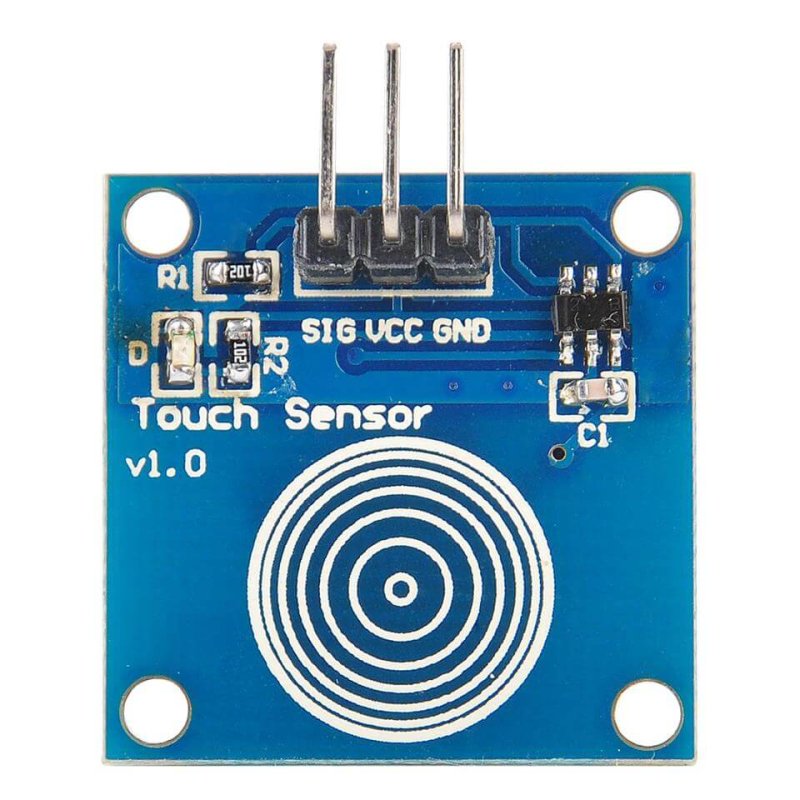

TTP223B 1 channel - touch sensor capacitive touch switch modules Accessories for arduino

20 ₪

الناشر: متجر القطع الالكترونية

القسم: مستشعرات - سينسور

تاريخ النشر: 2021-03-28

محتويات

- Digital Capacitive Touch Sensor arduino Interface

- Arduino Code for on board LED and Serial monitor observation.

Digital Capacitive Touch Sensor arduino Interface

Connect Vcc pin of Sensor breakout board to Arduino’s +5V pin and Gnd to Gnd. Connect Signal (SIG) pin to Arduino Digital pin D1 and Upload the following code to get response when you touch the Capacitive sensor.

Arduino Code for on board LED and Serial monitor observation.

code

نسخ

اقتباس

عرض

تنزيل


								//Digital Capacitive Touch Sensor Arduino Interfacing

#define sensorPin 1 // capactitive touch sensor - Arduino Digital pin D1

int ledPin = 13; // Output display LED (on board LED) - Arduino Digital pin D13

void setup() {
  Serial.begin(9600);
  pinMode(ledPin, OUTPUT);
  pinMode(sensorPin, INPUT);
}

void loop() {
  int senseValue = digitalRead(sensorPin);
  if (senseValue == HIGH){
    digitalWrite(ledPin, HIGH);
    Serial.println("TOUCHED");
  }
  else{
    digitalWrite(ledPin,LOW);
    Serial.println("not touched");
  }
  delay(500);

}
