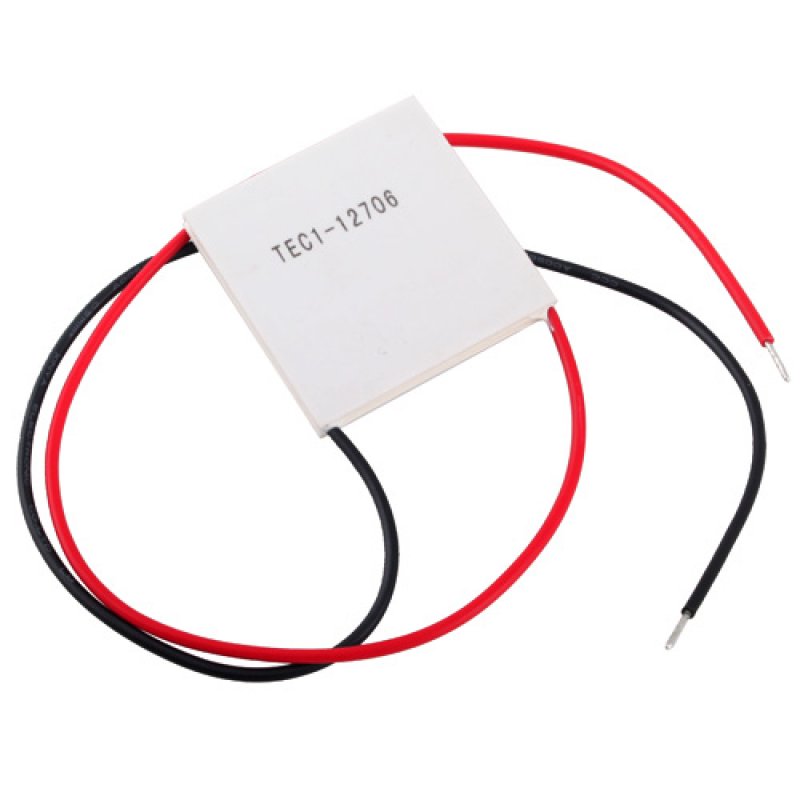

Chip Type: TEC1-12706

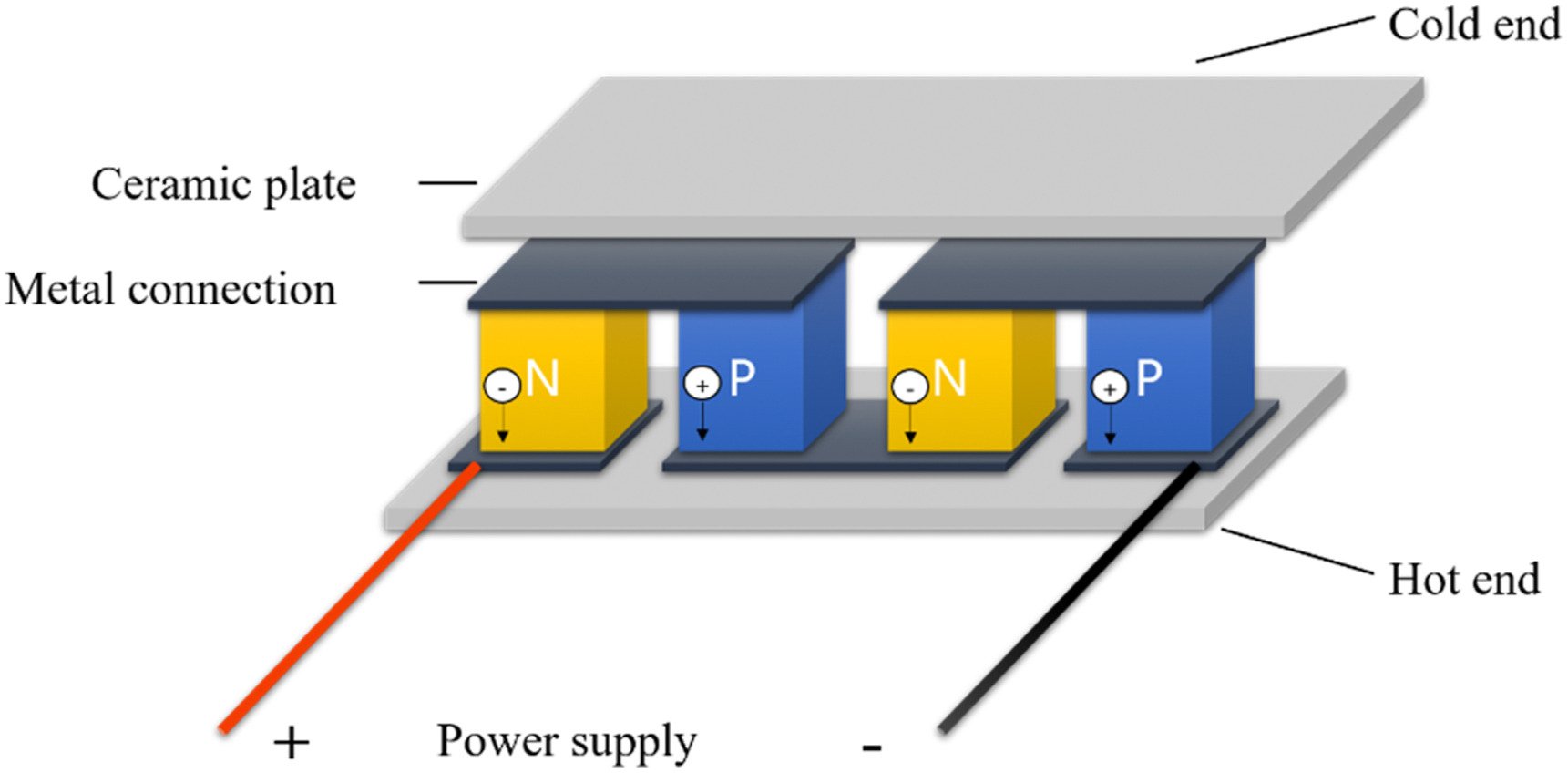

------------------------------------------------------------------------ External dimensions: 40 * 40 * 3.75mm Internal resistance: 2.1 ~ 2.4 (ambient temperature of 23 ± 1 'C, 1kHZ Ac test) The maximum temperature difference: Tmax (Qc = 0) above 59 'C. Working current: Imax = 4.3-4.6A (rated at 12V) Rated voltage: 12V (Vmax: 15V starting current 5.8A) Cooling power: Qcmax 55W Working environment: temperature range -55 'C ~ 83'C (high ambient temperature drop directly affect the cooling efficiency) Description : Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler. Since they consit primarily of semiconductor material sandwiched between ceramic plates and have no moving parts These devices must be used in conjunction with a heat sink to avoid burned Each device is full inspected and tested Fitted with 6-inch insulated leads ------------------------------------------------------------------------

Chip Type: TEC1-12710

------------------------------------------------------------------------ Dimensions: 40*40*3.4mm Element Logarithm 127 Wire Size: Lead Length 300±5mm RV Standard Wire Single Head 5mm Tin Plated Internal resistance: 1.2~1.5Ω (ambient temperature 23±1°C, 1kHZ Ac test) Large temperature difference: △Tmax (Qc=0) Above 60°C. Operating current: Imax = 10A (at 15Vmax voltage start) Rated voltage: DC12V (Vmax: 15.5V) Cooling power: Qcmax 92W Assembly pressure: 85N/cm2 Working environment: Temperature range -55°C～83°C (excessive ambient temperature will directly affect the cooling efficiency) Packaging Process: Four weeks standard 704 silicone rubber seal Packing standard: foam box packaging, storage conditions Ambient temperature -10 °C ~ 40 °C Storage conditions: -40~60°C Model number: TEC1-12703 Voltage: 12V Couples: 127 Umax (V): 15.2 Imax (A): 3 Tmax: 67 QM(W):29.7 W ------------------------------------------------------------------------

Chip Type: TEC1-12705

------------------------------------------------------------------------ Dimensions: 40 * 40 * 3.8mm element number 127 on Internal resistance: 2.5 ~ 2.8Ω (ambient temperature of 23 ± 1 , 1kHZ Ac test) Maximum temperature: Tmax (Qc = 0) over 67 . Working current: Imax = 4.3-4.6A (rated at 12V) Rated voltage: 12V (Vmax: 15V starting current 5.8A) Refrigeration power: Qcmax 50-60W Working environment: temperature range -55 ~ 83 (high ambient temperatures drop directly affect the cooling efficiency) Packaging process: four weeks standard 704 silicone rubber seal ------------------------------------------------------------------------
